Description
The FIR (finite impulse response) Filters Of Price Change indicator calculates a smoothed-out value of the difference between close and open price based on the smoothing function selected by the user. By default, it calculates a simple moving average of this value. In the input parameters, you can also select a window function to be used for the smoothing: Triangle, Hamming, or Hann.
In addition to the smoothed-out value, this indicator also calculates its rate of change and displays it as a separate plot.
Input Parameters
| Parameter | Description |
|---|---|
filter
|
The function to be used for data smoothing: simple moving average, Triangle weighting, Hamming window, or Hann window. |
length
|
The length of the smoothing indicator. |
pedestal
|
The weight given to the first and the last data point (in degrees, only used when Hamming is selected in filter).
|
Plots
| Plot | Description |
|---|---|
FIR
|
The Finite Impulse Response plot. |
ROC
|
The rate of change of Finite Impulse Response. |
ZeroLine
|
The zero level. |
Example*

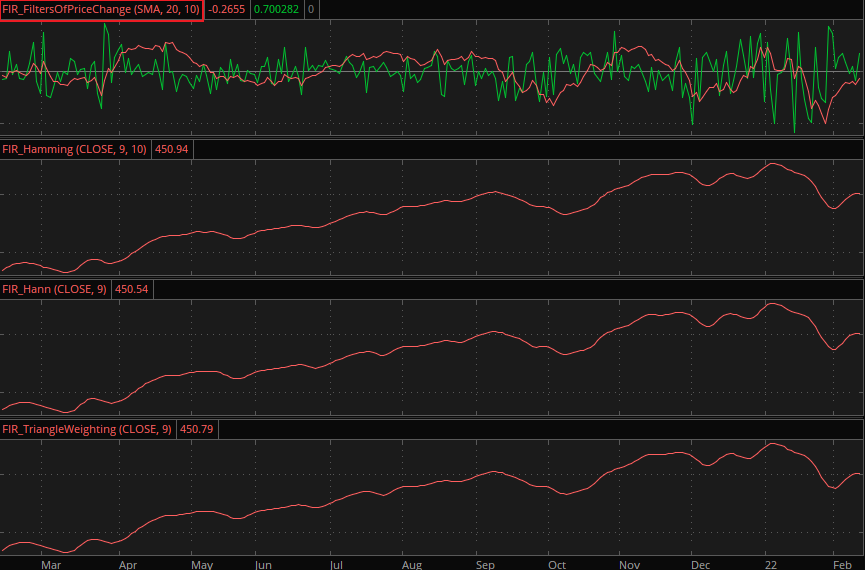

FIR_FiltersOfPriceChange with other windowing filters
*For illustrative purposes only. Not a recommendation of a specific security or investment strategy.
Past performance is no guarantee of future performance.
